Key Takeaways
- A portable diesel air compressor is only half the system. The hoses, fittings, receiver tanks, and distribution layout between the compressor and the tools determine whether the rated air pressure and flow actually reach the point of use.
- Pressure drop in the air delivery system — caused by undersized hoses, excessive length, and restrictive fittings — is the single most common reason that a correctly sized compressor fails to deliver adequate performance to the tools.
- A rule-of-thumb pressure drop budget for field systems is 0.5 bar maximum between compressor discharge and tool inlet. Every bar of pressure lost in the hose is energy the compressor has already paid for in fuel.
- On large construction and mining sites running multiple tools or drill rigs, receiver tanks and multi-compressor configurations smooth pressure fluctuations, reduce compressor cycling, and allow staged capacity matching.
- Peakroc® Machinery engineers portable diesel air compressors designed for field integration — with correctly sized discharge ports, multiple outlet valves, and pressure regulation systems that work with real-world hose runs and tool loads.

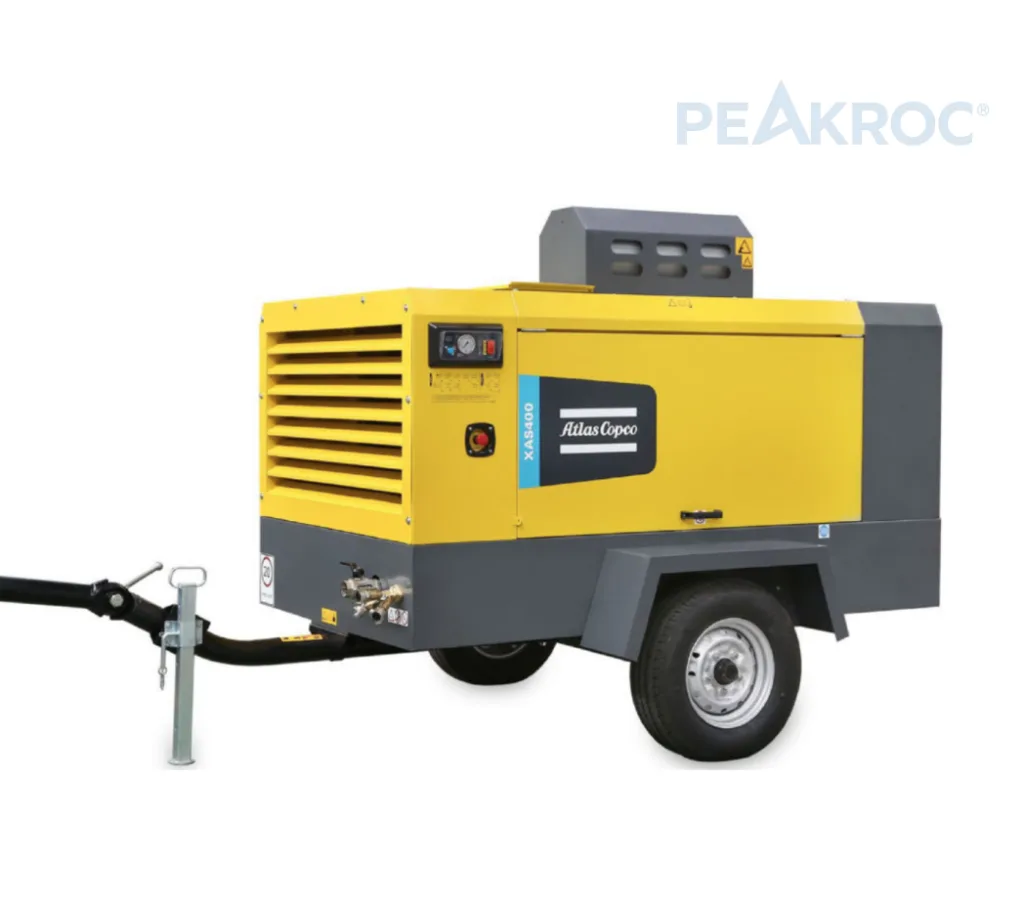

Why System Design Matters More Than Compressor Nameplate
A compressor rated at 10 m³/min at 10 bar delivers exactly that — at the discharge port. What arrives at the DTH hammer 30 meters away, through three hose couplings and a swivel joint, after climbing 15 meters up a drill mast, is something less.
How much less depends on the system between the compressor and the tool. This is the part most contractors don’t design — they just connect a hose and hope for the best.
On small jobs with short hose runs and a single tool, “connect and hope” works fine. On larger construction sites, quarry operations, or mining drill programs running multiple tools across a spread-out area, system design is the difference between tools running at full performance and tools starving for air while the compressor gauge reads normal.
Hose Selection: Diameter, Length, and the Pressure Drop They Cause
The air delivery hose is the most important component between the compressor and the tool, and the most commonly undersized.
How pressure drop works in hoses
Air flowing through a hose loses pressure due to friction between the moving air and the inner wall of the hose. This friction-based pressure drop increases with three factors: higher flow velocity (which increases with flow volume and decreases with hose diameter), longer hose runs, and rougher inner wall surfaces.
The relationship is not linear. Doubling the hose length doubles the pressure drop. But halving the hose diameter roughly quadruples the pressure drop — because the same volume of air must move faster through a smaller opening, and friction losses scale with the square of velocity.
Practical hose sizing table
This table shows approximate pressure drop for common hose sizes at typical flow rates over a 20-meter run at 7 bar:
| Hose Inner Diameter | Flow at 5 m³/min (185 CFM) | Flow at 10 m³/min (350 CFM) | Flow at 17 m³/min (600 CFM) |
|---|---|---|---|
| ¾ inch (19 mm) | 0.6–0.8 bar | 2.5+ bar (unacceptable) | Not feasible |
| 1 inch (25 mm) | 0.2–0.3 bar | 0.7–1.0 bar | 2.0+ bar (unacceptable) |
| 1¼ inch (32 mm) | 0.1 bar | 0.3–0.4 bar | 0.8–1.0 bar |
| 1½ inch (38 mm) | Negligible | 0.15–0.2 bar | 0.4–0.5 bar |
| 2 inch (50 mm) | Negligible | Negligible | 0.15–0.2 bar |
The rule is simple: always use the largest hose diameter that’s practical for the application. The marginal cost of a larger hose is trivial compared to the fuel wasted by the compressor working against friction losses, and the production lost by tools running below optimal pressure.
Fittings, couplings, and connectors
Every coupling, quick-connect fitting, elbow, and tee in the air path adds pressure drop. A single quick-disconnect coupling can add the equivalent of 1–3 meters of hose length. On a system with four couplings in series (compressor outlet, junction point, splitter, tool inlet), the cumulative effect can be significant.
Use the minimum number of connections possible. Avoid using fittings with a smaller bore than the hose — a 1-inch hose connected through ¾-inch couplings creates a bottleneck that negates the advantage of the larger hose.
Receiver Tanks: When and Why to Add One in the Field
Most portable diesel compressors have a small internal air receiver — typically 12 to 65 liters depending on the machine size. This internal receiver is adequate for smoothing the compressor’s load/unload cycle, but it’s not large enough to buffer significant demand fluctuations from the tools.
When a field receiver tank helps
Intermittent high-demand tools. A sandblasting nozzle runs continuously, but a pneumatic impact wrench draws air in short, sharp pulses. Without a receiver, each pulse draws directly from the compressor, causing momentary pressure dips. A 200–500 liter receiver tank between the compressor and the tools absorbs the pulses and delivers steady pressure.
Multiple tools with staggered demand. On a construction site with 3–4 pneumatic tools that don’t all run simultaneously, a receiver tank allows the compressor to run at a steadier average load rather than constantly cycling between full load and unload. This reduces fuel consumption and extends airend life.
Long hose runs. When the air must travel 50–100+ meters from the compressor to the work face — common on pipeline corridors and large quarry benches — a receiver tank positioned near the tools acts as a local air reservoir. The compressor fills the receiver through the long hose, and the tools draw from the receiver through a short connection. The receiver buffers the pressure drop that accumulates over the long run.
DTH drilling with intermittent tool changes. During rod changes on a drilling rig, the compressor unloads for 3–5 minutes. When drilling resumes, the hammer demands full pressure immediately. A receiver tank pre-charged during the rod change provides instant air at full pressure, allowing the compressor to load up without the tool waiting.
Sizing the receiver
A general field rule: receiver volume in liters should equal approximately 10–15 times the compressor’s FAD in m³/min for intermittent-demand applications. So a 10 m³/min compressor pairs well with a 100–150 liter receiver. For heavy pulsating loads (large impact wrenches, air-operated hoists), increase to 20–30 times FAD.
Multi-Compressor Configurations: Running Two or More Machines Together
On large mining and construction sites, a single compressor often can’t serve the full demand. Rather than buying one oversized machine, many operations deploy two or more smaller compressors in parallel. This approach offers several advantages.
Benefits of multi-compressor layouts
Redundancy. If one machine goes down for maintenance, the other(s) keep the site running at reduced capacity rather than zero capacity.
Staged capacity. During light-demand periods (early shift setup, lunch breaks, single-tool operations), one compressor can run while the other(s) idle. This saves fuel compared with running a single large machine at partial load, where specific fuel consumption (fuel per m³ of air) is typically 20–40% higher than at full load.
Flexibility. Two 10 m³/min compressors can serve two separate work areas, or be combined at a manifold to serve one large-demand area. One oversized machine can’t be split.
How to connect multiple compressors
Parallel discharge into a common header. Both compressors discharge into a T-junction or manifold, which feeds a single air delivery line to the tools. Each compressor should have a check valve at its discharge to prevent backflow when one machine is offline. The pressure setpoints should be staggered slightly (for example, Machine A loads at 9.5 bar, Machine B loads at 9.0 bar) so that Machine A handles the base load and Machine B only starts when demand exceeds Machine A’s capacity.
Parallel discharge into a common receiver. A better arrangement for pulsating loads: both compressors feed into a single large receiver tank, and the tools draw from the receiver. This fully decouples the compressors from the tools, eliminates pressure fluctuations at the point of use, and allows the compressors to load and unload independently based on receiver pressure.
Pressure Drop Budget: How to Audit Your Existing System
If you suspect your tools aren’t getting enough pressure despite the compressor gauge reading normal, here’s a systematic audit process.
Step 1 — Measure pressure at the compressor discharge
Use a calibrated gauge at the compressor’s outlet valve. Record the pressure at full load. This is your baseline — typically equal to the compressor’s rated working pressure.
Step 2 — Measure pressure at the tool inlet
Connect a gauge as close to the tool as possible — at the last coupling before the tool’s air inlet. Record the pressure while the tool is operating at full load.
Step 3 — Calculate the system pressure drop
Subtract the tool-end pressure from the compressor-end pressure. This is your total system pressure drop.
Step 4 — Compare against the budget
For most field applications, total system pressure drop should be below 0.5 bar. Between 0.5 and 1.0 bar is acceptable for non-critical work. Above 1.0 bar is costing you measurable performance — the compressor is burning fuel to generate pressure that never reaches the tool.
Step 5 — Identify and fix the largest loss points
If the pressure drop exceeds budget, walk the system from compressor to tool, checking hose diameter, fitting bore size, number of couplings, hose length, and any inline devices (moisture separators, lubricators, regulators). The fix is usually one or more of: larger hose, fewer couplings, shorter run, or removing a restrictive inline device.
For a deeper treatment of compressor sizing matched to specific drilling tools, see our guide on mastering blast hole drilling with air compressors and DTH rigs.
Site Layout Best Practices
Beyond hose sizing and receiver tanks, the physical placement of the compressor on site affects performance, safety, and maintenance access.
Position the cooler intake upwind. The compressor’s cooling system draws ambient air through the cooler cores. If the cooler intake faces into the prevailing wind, cooling performance improves. If it faces a wall, another machine’s exhaust, or the sun-heated side of a structure, the machine will run hotter.
Keep the compressor away from dust sources. The air intake filter and the cooler both suffer in dusty air. Position the compressor upwind of the main dust source (the drilling rig, the crushing plant, the sandblasting area) whenever possible. This extends filter life and reduces overheating risk.
Provide service access on all sides. A compressor parked against a wall or wedged between other equipment can’t be serviced properly. Leave at least 1 meter of clearance on the service-access side (where filters, oil fill, and drain points are located) and at least 0.5 meters on the cooler intake side.
Level the machine. Portable compressors rely on gravity-fed oil return circuits and level-sensing oil gauges. A compressor sitting on a significant slope can give false oil level readings and may experience oil distribution problems in the airend. Use the trailer jack and leveling pads to bring the machine to within 5 degrees of horizontal.
Frequently Asked Questions
What is the maximum hose length I can run from a portable compressor?
There’s no absolute maximum — it depends on hose diameter, flow rate, and acceptable pressure drop. With a 2-inch (50 mm) hose at 10 m³/min, you can run 100+ meters with minimal loss. With a ¾-inch (19 mm) hose at the same flow, even 10 meters produces problematic pressure drop. Use the sizing table above and keep total system loss below 0.5 bar.
Do I need a receiver tank for a single jackhammer?
Usually no. A single jackhammer draws a relatively steady 70–90 CFM. The compressor’s internal receiver and loading control handle this without external buffering. A receiver becomes valuable when running multiple tools with different demand patterns, or when the hose run exceeds 30 meters.
Can I connect two different-sized compressors in parallel?
Yes, with proper check valves and staggered pressure setpoints. The larger machine should have the higher load setpoint so it acts as the base-load provider. The smaller machine loads only when demand exceeds the larger machine’s capacity. Both machines need independent safety systems.
How do I calculate the total air demand for a construction site?
List every pneumatic tool, its CFM rating, and its estimated simultaneous-use factor (typically 0.7–0.85 for construction). Sum the products. Add 25–30% for hose losses, altitude, and margin. Match this total to the compressor’s rated FAD. Our compressor buyer’s guide walks through this calculation in detail.
