Air Compressor

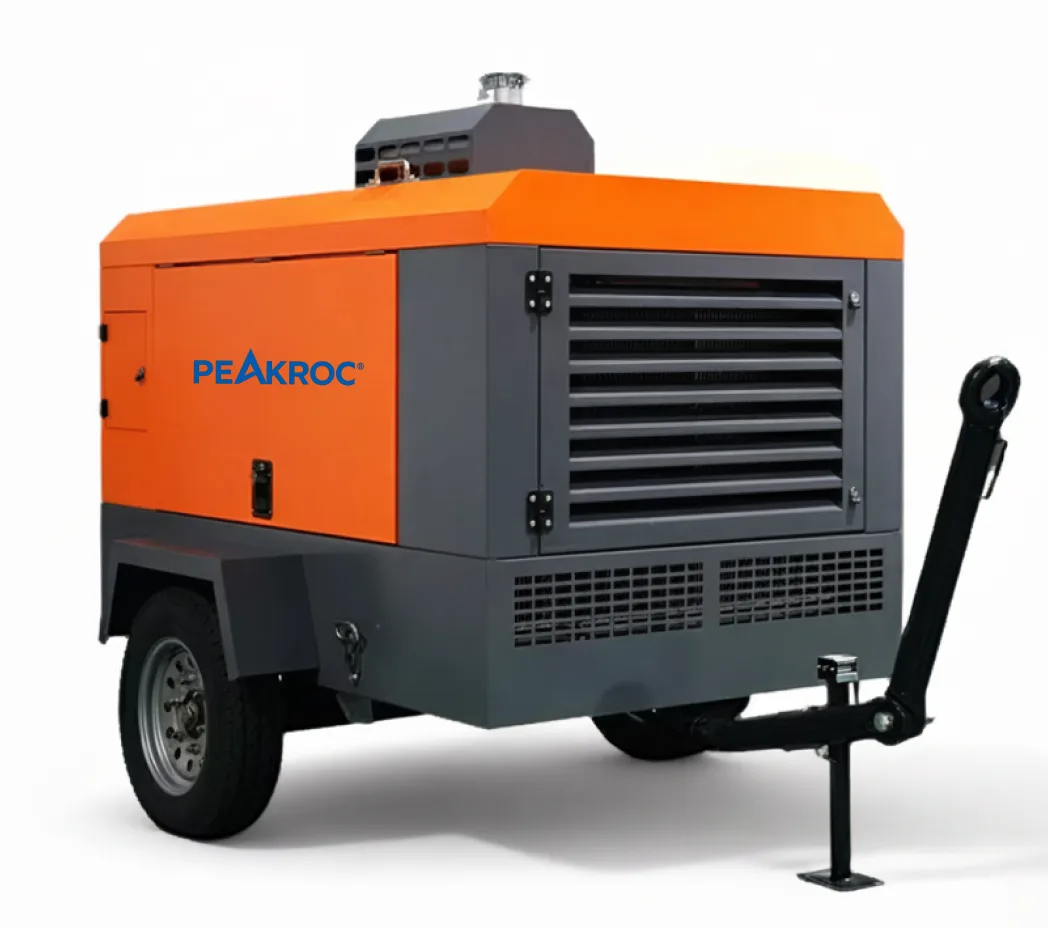

12 m³/min 7 bar Portable Diesel Air Compressor for Drilling and Sandblasting

Air Capacity

12 m³/min

Work Pressure

7 bar

Engine Power

97 kW

Engine

Cummins

Peakroc® PRMD series portable air compressors with a free air delivery range of 5.00–46.38 m³/min and a working pressure of 7–35 bar, these compressors can meet the requirements of almost any industrial application.

Certifications:
ISO9001 Quality Management System
UKAS Quality Management
CE Certification (European Safety Compliance)

VIEW SPECIFICATIONS

Peakroc® PRMD series diesel portable Screw Air Compressor are widely used in:

Water well drilling / Geothermal boreholes
Mining and quarrying air supply
Sandblasting, rust removal and surface treatment
Pipeline pressure testing and purging
Bridge and foundation anchoring / civil engineering works
Hydropower construction / structural reinforcement

The 12 m³/min 7 bar (425cfm 102psi) portable diesel screw air compressor is designed for mid- to high-demand pneumatic applications such as drilling, blasting, and construction support. It delivers continuous compressed air suitable for rotary and light DTH drilling, sandblasting, pipeline purging, and civil engineering works. The compressor uses a fuel-efficient diesel engine, high-precision air end, and reinforced towable chassis for rough field environments.

1) Durable Diesel Power & Structural Design

Fuel-efficient industrial diesel engine matched to 12 m³/min airflow output.
Welded frame with shock-absorbing mounting for stable towing and operation.
2 mm cold-rolled steel soundproof canopy with fire-retardant insulation.

2) High-Efficiency Screw Air End

Rotary screw air end with optimized rotor profile for large displacement at low pressure.
Alloy steel rotors and SKF bearings ensure long service life and low compression loss.
Stable output at 7 bar—ideal for drilling, sandblasting, pipeline testing and industrial air tools.

3) Reliable Filtration, Cooling & Easy Maintenance

Dual-stage air intake filters protect the compressor in dusty job sites such as mines, quarries and drilling rigs.
Efficient oil-air separation maintains low oil carryover (<3 ppm).
Large service doors allow easy access to filters, separator core, belts, and fluid maintenance areas.

Specifications

Model: PRMD-1207
Free air delivery	12.00 m³/min (425 cfm)
Working pressure	7 bar (102 psi)
Max. design pressure	7 bar (102 psi)
Dimensions (L × W × H)	3240 × 1880 × 2100 mm
Weight	1800 kg
Wheel quantity	2
Outlet valve size	G 1-1/2″ × 1 + G 3/4″ × 1
Diesel Engine
Engine brand	Cummins
Engine model	QSB3.9-C130-32
Rated power	97 kW (130 hp)
Engine type	Turbocharging, charge air cooling
Bore × stroke × cylinders	102 × 120 mm × 4
Engine speed (rated)	2250 RPM
Engine speed (unloaded)	1700 RPM
Engine oil capacity	11 L
Coolant capacity	27 L
Battery capacity	720 CCA
Fuel tank capacity	160 L
Compressor System
Compressed air vessel capacity	90 L
Lubricant capacity	40 L
