Air Compressor

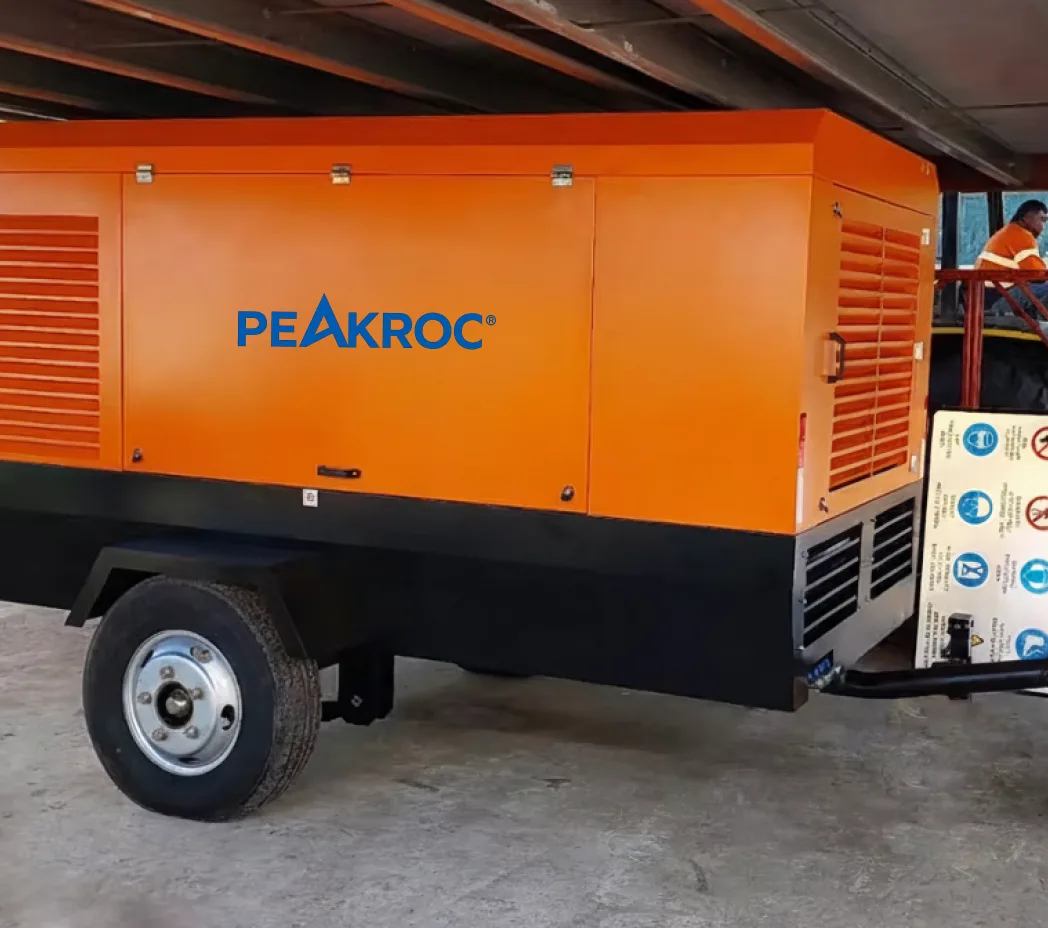

10 m³/min 10 bar Portable Diesel Air Compressor for Drilling-Mining-Pipeline

Air Capacity

10 m³/min

Work Pressure

10 bar

Engine Power

97 kW

Engine

Cummins

Peakroc® PRMD series portable air compressors with a free air delivery range of 5.00–46.38 m³/min and a working pressure of 7–35 bar, these compressors can meet the requirements of almost any industrial application.

Certifications:
ISO9001 Quality Management System
UKAS Quality Management
CE Certification (European Safety Compliance)

VIEW SPECIFICATIONS

Peakroc® PRMD series diesel portable Screw Air Compressor are widely used in:

Water-well / geothermal drilling (100–200 m)
Mining & quarry support
Pipeline pressure testing & purging
Sandblasting / surface preparation
Civil construction & road maintenance
Shipyard & steel fabrication

The Peakroc® PRMD-10/10 configuration provides 10 m³/min free air delivery at 10 bar (375cfm 145psi). It targets mid-to-high demand tasks where stable pressure and continuous duty are required: water-well and geothermal drilling, quarry support, medium blasting, and pipeline pressure tests. The package combines a continuous-duty diesel engine, high-efficiency screw air end, and a towable chassis designed for site moves.

1) Powertrain & Structure

Industrial diesel engine matched to compressor load for steady 10 bar discharge.
Welded steel frame with vibration isolation mounts; balanced axle for safe towing.
2 mm cold-rolled steel canopy with flame-retardant acoustic lining to reduce noise and protect internals.

2) Air End & Core Components

Oil-injected rotary screw air end with precision SAP rotor profile for high volumetric efficiency.
Alloy-steel rotors on SKF bearings; tight clearances for thermal stability and limited flow drop at sustained load.
Intake, minimum-pressure and safety controls sized for 10 bar operation.

3) Filtration, Cooling & Service Access

Dual-stage air intake filtration (fine dust removal) for drilling and quarry conditions.
High-efficiency oil separation for low carryover; aftercooler interface available if dryer air is required.
Service points (air/oil filters, separator, belts, fluids) accessible from one side to limit downtime.

Specifications

Model: PRMD-1010
Free air delivery	10.00 m³/min (375 cfm)
Working pressure	10 bar (145 psi)
Max. design pressure	10 bar (145 psi)
Dimensions (L × W × H)	3240 × 1880 × 2100 mm
Weight	1800 kg
Wheel quantity	2
Outlet valve size	G 1-1/2″ × 1 + G 3/4″ × 1
Diesel Engine
Engine brand	Cummins
Engine model	QSB3.9-C130-32
Rated power	97 kW (130 hp)
Engine type	Turbocharging, charge air cooling
Bore × stroke × cylinders	102 × 120 mm × 4
Engine speed (rated)	2500 RPM
Engine speed (unloaded)	1700 RPM
Engine oil capacity	11 L
Coolant capacity	27 L
Battery capacity	720 CCA
Fuel tank capacity	160 L
Compressor System
Compressed air vessel capacity	90 L
Lubricant capacity	40 L
