Factory Compressed Air System Sizing Guide: How to Calculate CFM/FAD, Peak Demand, Working Pressure, Air Quality, Receiver Storage, Piping, Redundancy, Controls, and Future Expansion

Key Takeaways

• Size a factory compressed-air system from actual or calculated demand, not compressor motor kW alone.
• Separate minimum, average, normal-production and peak simultaneous demand instead of simply adding every machine’s maximum CFM.
• Start with the pressure required at the point of use, then work backward through filters, dryers, valves, receivers and distribution piping.
• Air quality should follow the process. ISO 8573-1 classifies compressed-air purity for particles, water and oil.
• Receiver storage and properly sized piping can manage short demand peaks without permanently oversizing compressor capacity.
• Redundancy should be designed around production risk and load profile rather than simply installing one very large compressor plus an arbitrary safety margin.

CAGI identifies demand, pressure and air quality as the three fundamental parameters that should be established before compressed-air equipment is selected.

That is also the way we approach factory compressed-air projects at Peakroc®.

We start with the customer’s production requirement and work backward to the compressor room.

Why Factory Compressor Sizing Is More Than Choosing kW or CFM

A common inquiry we receive looks like this:

“Our current compressor is 110 kW. Please quote another 110 kW compressor.”

Our first response is normally to request more information.

A motor rating does not tell us:

• how much air the plant actually consumes;
• how much demand changes between shifts;
• whether large short-duration peaks occur;
• what pressure the critical equipment really needs;
• how much pressure is lost between the compressor room and production;
• what air quality the process requires.

A compressor can be perfectly sized on paper and still fail in the factory because the complete system was not considered.

The useful design path is:

Production equipment → required FAD → minimum pressure → air quality → distribution → storage → compressor architecture → controls

not:

Existing kW → buy the same kW again.

CAGI similarly recommends establishing the maximum, average and minimum demand of an existing installation before new capacity is selected. For a new system, it recommends calculating equipment demand together with realistic usage factors because many pneumatic loads are intermittent rather than continuous.

Step 1: Establish the Real CFM/FAD Demand

For an existing factory, measured data should normally take priority over theoretical nameplate calculations.

The objective is to establish a demand profile.

You want to know:

minimum demand → average demand → normal production demand → peak simultaneous demand

These numbers answer different questions.

Minimum demand helps determine whether a large compressor will spend long periods operating inefficiently at very low load.

Average demand helps establish the normal energy requirement.

Peak simultaneous demand determines whether the system can maintain production when several large users operate together.

A Simple Example

Consider a production area containing:

Equipment	Rated Demand	Operating Pattern
Packaging line	300 CFM	Continuous
Pneumatic assembly	250 CFM	Intermittent
Blow-off station	150 CFM	Intermittent
Dust collector pulse	200 CFM	Short bursts
Cleaning station	100 CFM	Occasional

Adding all ratings produces:

1,000 CFM

But that does not mean the factory continuously consumes 1,000 CFM.

If normal production averages around 600–700 CFM and only reaches 1,000 CFM during short simultaneous events, designing the entire compressor room as if 1,000 CFM were a constant base load can create unnecessary capital and energy cost.

The correct question is:

How long does the peak last?

A ten-second 1,000 CFM peak is very different from a sixteen-hour 1,000 CFM production requirement.

That distinction determines whether the best solution is:

more compressor capacity, additional receiver storage, a trim compressor, different controls, or a combination of them.

Do Not Size New Compressors Around Existing Waste

Another issue we frequently discuss with customers is that the measured flow of an existing factory is not automatically the same as useful production demand.

The measured number can include:

leaks, excessive blowing, unnecessary open-air cooling, inappropriate pneumatic applications and artificial demand created by excessive system pressure.

CAGI identifies leaks, artificial demand and inappropriate uses as three major sources of compressed-air waste. It also recommends operating at the lowest practical system pressure because air-consuming devices and leaks consume more air as pressure increases.

So if a plant measures:

2,000 CFM

but a significant portion is avoidable waste, simply installing enough new compressor capacity to preserve all 2,000 CFM is not necessarily good engineering.

Our preferred sequence is:

measure → identify useful production demand → identify avoidable demand → correct obvious waste → size the supply system

This can sometimes reduce the amount of new compressor capacity the customer actually needs.

Step 2: Calculate Pressure From the Point of Use Backward

Flow and pressure should never be separated during sizing.

Suppose the most pressure-sensitive production machine requires:

6.5 bar at its inlet

The compressor may need to produce more than 6.5 bar because pressure is lost through:

dryer and filtration, valves, receivers, headers, branch piping, regulators and fittings.

The simplified design relationship is:

Compressor discharge pressure = minimum point-of-use pressure + treatment pressure loss + distribution pressure loss + required control margin

The objective is not to add as much margin as possible.

Higher compressor pressure costs energy.

CAGI notes that approximately every additional 2 psi of unnecessary operating pressure can increase compressor power consumption by around 1%, and recommends keeping system pressure drop as low as practical.

This is why we normally investigate pressure loss before recommending a higher-pressure compressor.

Peakroc Client Case: We Helped a Cement Plant Improve the Air Delivery System

One of our industrial customers operates a cement plant in Vietnam.

Their compressed-air equipment has to work in an environment with high dust loading and elevated ambient temperatures, so equipment stability was an important part of the project.

Peakroc supplied compressors suited to the plant’s operating conditions.

But our work did not stop at supplying the machines.

During follow-up technical support, our engineering team also worked with the customer on the compressed-air pipeline system because compressor output is useful only if sufficient air reaches production with acceptable pressure loss.

The customer subsequently reported that the Peakroc machines were operating stably in the dusty, high-temperature environment and specifically highlighted the improvement work our engineers carried out on the air pipeline system.

What problem were we actually helping solve?

The important issue was not simply:

“Does the compressor generate enough air?”

It was:

“Can the plant deliver that air efficiently to the equipment that needs it?”

A compressor can show normal discharge pressure while production equipment still experiences unstable pressure if the distribution network contains restrictive sections.

That is why our factory system reviews do not look only at compressor kW and FAD.

We also ask about:

header diameter, branch diameter, pipe length, layout, number of bends and valves, filter condition, dryer pressure drop and the distance to the critical production area.

CAGI identifies pipe diameter, internal surface condition, velocity, fittings, valves, elbows and restrictive treatment equipment as major contributors to compressed-air pressure drop.

Why this approach worked

Adding another compressor would not automatically remove a distribution restriction.

If the bottleneck is the pipeline, generating more compressed air upstream may simply increase energy consumption while the downstream pressure problem remains.

For this customer, supporting the compressor with distribution-system optimization was therefore more useful than treating the compressor as an isolated piece of equipment.

That is the engineering lesson we carry into other industrial projects.

Step 3: Determine the Required Air Quality

Factory compressed air is not one universal product.

A pneumatic cylinder and a precision production process may use compressed air from the same compressor room but require very different levels of purity.

ISO 8573-1 defines compressed-air purity classes with respect to particles, water and oil.

This is why we prefer customers to specify something more precise than:

“We need clean air.”

For engineering purposes, we need to know:

• particle requirement;
• pressure dew point or water class;
• oil requirement;
• whether compressed air touches the product directly;
• whether a sensitive instrument or process is involved.

Do not automatically treat the whole factory to the strictest standard

Suppose:

90% of factory demand = general pneumatic plant air

while:

10% = highly moisture-sensitive process air

It may not always be economical to dry and filter 100% of factory air to the requirement of that 10%.

CAGI specifically notes that higher air-quality requirements cost more to achieve and that higher-quality applications can sometimes use additional localized air treatment instead of forcing the entire plant-air system to operate at the highest purity requirement.

This creates an important sizing decision:

central treatment vs point-of-use treatment

and it can materially affect dryer size, filtration size, pressure drop and lifecycle cost.

Step 4: Size Receiver Storage Around the Demand Event

An air receiver does not create compressed air.

It stores compressed air.

That distinction matters.

Storage is particularly useful when the factory contains short-duration loads such as:

• pneumatic cylinders cycling together;
• baghouse pulse cleaning;
• rapid actuators;
• batch processes;
• intermittent blow-off.

The compressor may not need to instantly follow every one of these events if sufficient usable stored air is available.

The U.S. Department of Energy’s MEASUR engineering tools include separate calculators for receiver tank sizing, usable air capacity, total system capacity and compressed-air pipe sizing, illustrating why storage should be engineered around actual operating conditions rather than selected from one universal tank-size rule.

The important variables are:

peak flow + peak duration + receiver pressure + minimum acceptable pressure + compressor response time

A five-second event and a five-minute event are not the same sizing problem.

Step 5: Size the Piping for Peak Flow

Piping is sometimes treated as a secondary installation item.

In our experience, that is a mistake.

The compressor supplies air to the distribution system.

The distribution system supplies air to production.

If the pipe network cannot carry peak flow with acceptable pressure loss, increasing compressor capacity does not automatically solve the problem.

For large plants, we therefore look at:

main header → secondary header → branch line → point-of-use connection

and evaluate the expected flow in each section.

Ring main or dead-end distribution?

Where factory layout permits, a ring or loop system can provide air through multiple paths.

That can reduce pressure variation and also make future production extensions easier.

A long dead-end line serving many machines concentrates all flow through one path, making pipe sizing particularly important.

CAGI describes the distribution network as an integral part of compressed-air-system efficiency and notes that modern layouts can facilitate loops and new drops while reducing pressure loss.

Step 6: Choose the Number of Compressors From the Load Profile

Once required FAD, pressure and air quality are known, another question remains:

One large compressor or several smaller compressors?

There is no universal answer.

For relatively constant demand, a larger base-load compressor can make sense.

For a factory whose demand changes substantially between shifts, several machines can provide much greater flexibility.

CAGI gives a useful redundancy example: where demand is highly variable, three compressors each sized around 50% of maximum system demand can allow two units to cover peak requirements while the third remains available for backup. A variable-speed machine can serve as trim capacity at lower loads.

This illustrates the principle.

The exact percentages should follow the customer’s real demand profile rather than being copied mechanically.

Peakroc Client Case: Correct Sizing Was Better Than Keeping Oversized Capacity

We encountered the same sizing principle in one of our quarry customer projects.

The customer’s legacy compressor arrangement was oversized relative to the actual operating requirement.

Instead of automatically replacing the old capacity on a like-for-like basis, we reviewed what the application really needed and recommended compressors matched more closely to the working demand.

According to the project results published by Peakroc, the customer achieved more than USD 20,000 in annual fuel savings while also improving drilling speed.

Although this was a quarry application rather than a stationary factory compressor room, the engineering principle transfers directly to factory systems.

Why did reducing oversizing help?

A larger installed compressor is not automatically a more efficient compressor system.

If actual demand remains far below installed capacity for long periods, the compressor may spend excessive time:

part loaded → unloaded → cycling → producing little useful air relative to its energy input

For factories, the same problem can appear when management buys one large compressor based entirely on a possible future peak.

The better solution may be:

base-load capacity + trim capacity + standby capacity

rather than one machine sized for every theoretical scenario.

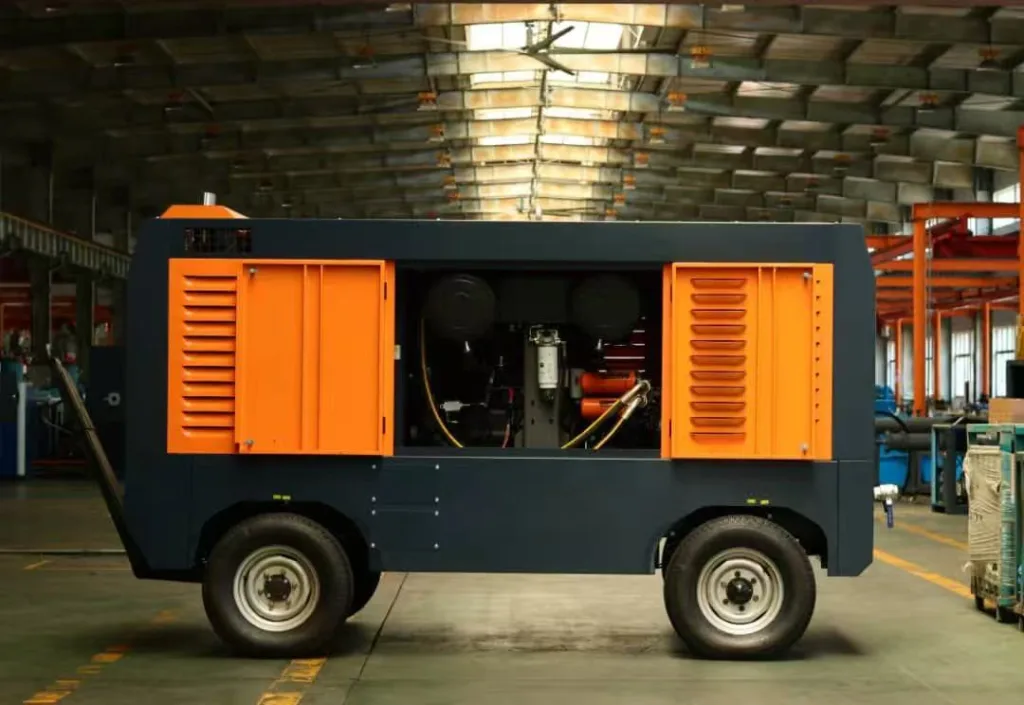

Peakroc Client Case: Simplifying a Multi-Compressor System

Another Peakroc customer project provides a useful example of why the number of compressors also matters.

A large Australian mining contractor was operating four drilling rigs with three 15 m³/min compressors connected in parallel.

The customer faced several practical problems:

• three fuel systems;
• three service schedules;
• multiple potential failure points;
• uneven loading when drilling demand changed.

Published Peakroc project data recorded combined fuel consumption of approximately 75–85 L/h for the previous three-compressor arrangement.

After reviewing the simultaneous air requirement, Peakroc supplied a 45 m³/min, 10 bar compressor to carry the primary load while one of the customer’s previous units was retained as emergency backup.

The reported project outcome included:

approximately 45% lower diesel consumption, reduced maintenance workload and an 8% improvement in holes drilled due to fewer air-supply interruptions.

Why include a mining case in a factory sizing guide?

Because the engineering decision is the same:

installed compressor quantity should follow the demand profile and redundancy strategy.

We are not suggesting that every factory should replace three compressors with one large machine.

In fact, many factories need exactly the opposite configuration because N+1 redundancy is critical.

The lesson is that neither:

“more compressors are always safer”

nor:

“one large compressor is always more efficient”

is correct.

The right architecture comes from measuring the actual demand curve.

How to Design Redundancy

For a production facility where compressed-air failure stops the line, maintenance must be possible without losing the entire air supply.

That normally leads to some form of redundancy.

But redundancy should be defined in terms of:

What happens if the largest operating compressor stops?

Suppose the plant peak is:

3,000 CFM

and production cannot tolerate an unplanned compressed-air shutdown.

Possible architectures could include:

2 × 3,000 CFM

or

3 × approximately 1,500 CFM

or another modular arrangement.

The first offers straightforward 100% standby but can perform poorly when normal demand is much lower than peak.

The second can provide better staging and part-load flexibility.

CAGI recommends redundancy in systems where compressor failure could stop operations and notes that highly variable loads often favor modular capacity rather than one large deeply part-loaded machine.

The correct answer comes from the actual production profile.

Compressor Sequencing Matters

A factory can install the correct compressor sizes and still waste energy if the controls are poorly coordinated.

Imagine three compressors all using independent pressure bands.

As demand changes, multiple machines may load and unload unnecessarily.

A centralized controller can instead determine which machine should operate as:

base → trim → standby

and bring capacity online only when needed.

CAGI notes that centralized system controls become increasingly important as compressor quantity grows and can coordinate compressor sequencing, variable-speed operation and even other system components such as dryers.

The goal is:

stable header pressure with the minimum efficient combination of running compressors.

Plan Future Expansion Without Oversizing Today

Future production matters.

But “future-proof” should not mean buying twice the required compressor today.

Suppose current peak demand is:

2,000 CFM

and a confirmed new line will require another:

500 CFM in two years.

The future capacity should influence:

• compressor-room space;
• electrical infrastructure;
• cooling and ventilation;
• main header size;
• receiver configuration;
• control system;
• dryer and filter expansion.

However, installing a 4,000 CFM compressor today may create years of inefficient part-load operation.

CAGI recommends accounting for future production changes after the current baseline demand has been established.

A modular strategy can therefore be more flexible:

install efficient current capacity → prepare infrastructure → add the next compressor when production demand actually arrives

Our Six-Step Factory Compressed-Air Sizing Method

At Peakroc®, the information we want before recommending a factory compressed-air configuration can be summarized in six stages:

1. Measure demand. Establish minimum, average, normal and peak simultaneous FAD.
2. Confirm pressure. Identify the minimum pressure required by critical production equipment and calculate losses backward.
3. Define air quality. Specify particles, moisture and oil requirements according to the actual process.
4. Review storage and piping. Check receiver capacity, header sizing, branch layout and pressure drop.
5. Select compressor architecture. Determine base load, trim capacity, standby requirement and fixed-speed/VSD roles.
6. Plan controls and expansion. Coordinate sequencing and prepare the system for realistic future production growth.

Only after these questions are answered do compressor kW and model numbers become meaningful.

Six Common Factory Compressed-Air Sizing Mistakes

1. Replacing kW with kW. Two compressors with similar motor power do not necessarily deliver the same usable FAD under the required operating conditions.
2. Adding every machine’s maximum CFM. This can overstate real simultaneous demand.
3. Sizing only for average demand. The factory may still experience severe pressure drops during short production peaks.
4. Raising compressor pressure instead of finding the restriction. A small pipe, loaded filter or restrictive dryer may be the real problem.
5. Ignoring maintenance redundancy. A critical production system must consider what happens when one compressor is unavailable.
6. Buying oversized capacity for uncertain future expansion. Modular expansion is often more flexible and energy-efficient.

Factory Compressed-Air RFQ Checklist

Information	What We Need to Know
Existing compressors	Rated FAD, pressure, power and operating hours
Actual plant demand	Minimum, average and peak FAD
Production equipment	Air consumption and duty cycle
Required pressure	Minimum pressure at critical equipment
Air quality	Particle, water and oil requirements
Dryer requirement	Required PDP and maximum inlet temperature
Receiver tanks	Capacity and operating pressure
Piping	Header diameter, branch size, length and layout
Peak demand	Flow and duration
Operating schedule	Shifts and annual operating hours
Redundancy	Consequence if one compressor stops
Expansion	Planned production lines and timing

Providing this information allows us to evaluate the system, rather than simply quoting a machine.

Final Recommendation

Factory compressor sizing should begin at the production equipment—not at the compressor nameplate.

First establish:

How much air does production actually consume?

Then determine:

When does it consume it?

Next ask:

What pressure and air quality must arrive at the point of use?

Only then should you select:

compressor capacity + receiver storage + dryer + filtration + piping + redundancy + controls

Our cement-plant customer experience illustrates why this matters.

Supplying reliable compressors was only part of the solution. Helping the customer improve how compressed air moved through the plant was also important because system performance depends on what actually reaches production—not only what leaves the compressor.

Our other Peakroc customer projects reinforce the same principle from another angle: correctly matched capacity can reduce wasted fuel and improve productivity, while the wrong compressor architecture can create unnecessary operating cost and maintenance complexity.

So the most useful purchasing question is not:

“What size compressor should we buy?”

It is:

“What compressed-air system will provide the required FAD, pressure and air quality through normal production, peak demand, maintenance and future expansion?”

That is the question Peakroc® engineering aims to answer before recommending the equipment.

FAQ

How do I calculate how much CFM my factory needs?

For an existing factory, measure minimum, average and peak compressed-air demand during representative production periods. For a new factory, calculate equipment FAD together with realistic duty cycles and simultaneous-use factors.

Should a factory compressor be sized for average or peak demand?

The system must be capable of supporting peak demand, but short peaks do not necessarily require compressor capacity alone. Receiver storage, trim compressors and system controls can help manage intermittent events.

Why is factory pressure low even when compressor capacity seems sufficient?

The problem may be pressure drop through piping, filters, dryers, valves, regulators or undersized distribution components. Measure pressure at several locations before assuming more compressor capacity is required.

How much spare compressor capacity should a factory have?

It depends on production criticality, maintenance strategy and load variation. Where compressor failure would stop production, a redundant arrangement should normally be considered.

Should I use one large compressor or several smaller compressors?

Stable continuous demand can favor a larger base-load machine, while highly variable demand often benefits from modular compressors and a dedicated trim unit. Redundancy requirements also affect the decision.

How large should the factory air receiver be?

Receiver size depends on peak airflow, event duration, storage pressure, minimum allowable plant pressure and compressor response time. It should be calculated from the actual demand event rather than selected from one universal rule.

How should I size factory compressed-air piping?

Piping should be checked against peak flow, pipe length, acceptable pressure drop, layout, fittings and future expansion. Main headers should not be selected from compressor outlet size alone.

How should future factory expansion be included in compressor sizing?

Reserve suitable electrical capacity, compressor-room space, header capacity, controls and treatment-system expansion. Where possible, add compressor modules when real demand arrives instead of operating a substantially oversized system for years.

---
