45 m³/min 10 bar Portable Diesel Air Compressor for Mining Tunneling

The PRMD-4510 can typically support 3–5 drill rigs operating at the same time, depending on rig type and air consumption. Standard rotary or DTH rigs using 8–10 inch hammers consume approximately 10–12 m³/min each. With 45 m³/min total capacity, the compressor comfortably supplies 4 rigs with reserve capacity for intermittent peak demand. For larger 12-inch hammers consuming 15–18 m³/min, the unit supports 2–3 rigs. The key advantage versus using multiple smaller compressors is simplified logistics—one fuel supply, one maintenance schedule, and centralized pressure control. Contractors typically report 20–30% fuel savings when replacing three 15 m³/min units with a single PRMD-4510.

The choice depends on your priority: airflow volume or extreme pressure. The PRMD-4510 (45 m³/min at 10 bar) is designed for multi-rig operations where 10 bar pressure is adequate for blasthole drilling in soft-to-medium rock formations (sandstone, limestone, weathered granite). If you’re running 3–5 rigs simultaneously in a large open-pit mine, the massive airflow prevents bottlenecks and keeps all rigs productive. In contrast, the PRMD-3425 (34 m³/min at 25 bar) is for deep drilling beyond 800 meters or ultra-hard rock (fresh granite, basalt, quartzite) where high pressure is non-negotiable. Both units use the same 410 kW Cummins engine, but the 4510 delivers 30% more airflow at lower pressure—ideal when quantity of tools matters more than extreme depth or hardness.

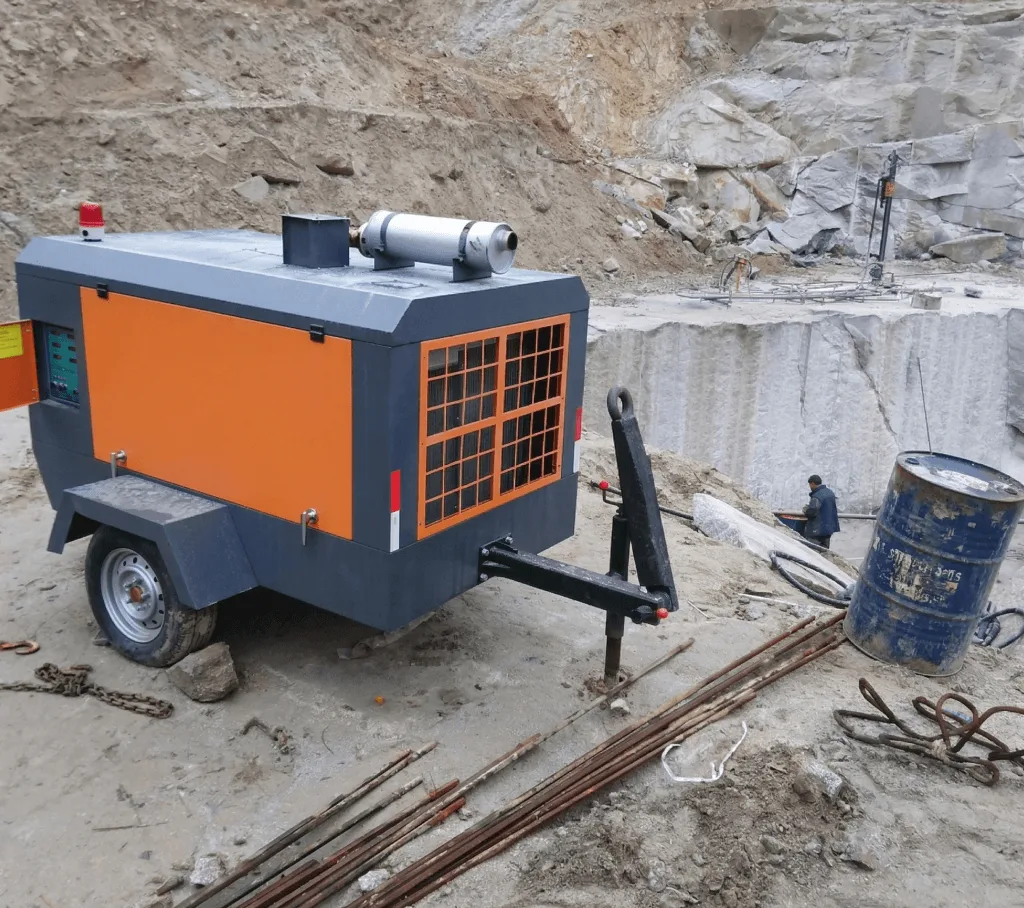

Yes, this is one of the primary use cases. Many contractors operate two or three 15–20 m³/min compressors in parallel (manifolded together) to achieve sufficient airflow for multi-rig operations. A single PRMD-4510 typically replaces this setup with measurable benefits: fuel consumption drops 20–40% (one engine at optimal load versus three engines at varying loads), maintenance workload reduces by approximately 60% (one service schedule instead of three), and operational complexity decreases significantly (single fuel supply, single operator, single point of control). In our Australian iron ore case study, replacing three 15 m³/min units with one PRMD-4510 saved AUD $85,000 annually in fuel costs alone. The ROI typically occurs within 18–24 months through combined fuel and maintenance savings.

Yes, 10 bar is adequate for TBM applications and the 45 m³/min high volume is actually more critical than extreme pressure for tunnel projects. TBM operations have multiple simultaneous air demands: the boring machine itself, rock drilling for support anchors, shotcrete application, and most importantly—tunnel ventilation requiring 30–40 m³/min sustained airflow to maintain safe oxygen levels and remove diesel fumes in tunnels exceeding 2 km length. Standard pneumatic tools used in tunneling (rock drills, roof bolters, pneumatic breakers) operate optimally at 8–12 bar. The PRMD-4510’s 45 m³/min capacity handles the combined load without requiring separate ventilation fans or auxiliary compressors. For comparison, a 20 m³/min compressor can supply the tools OR ventilation but not both simultaneously—requiring two units where one PRMD-4510 suffices.

The PRMD-4510 consumes approximately 35–42 liters per hour at 70–100% load. While this seems high compared to a single 20 m³/min unit (18–22 L/h), the comparison should be against the multiple compressors it replaces. Three 15 m³/min compressors running in parallel consume 75–85 L/h total (each burning 25–28 L/h). By consolidating to one PRMD-4510, total fuel consumption drops by approximately 45%. The efficiency gain comes from running one large engine at optimal load versus three smaller engines with uneven load distribution—when one drill rig stops, three small compressors waste fuel idling while one runs hard; the PRMD-4510 simply adjusts to actual demand. Additionally, the 558-liter fuel tank provides 13–16 hours continuous runtime, reducing refueling frequency in remote mining or tunnel sites.

Yes. The standard unit operates reliably from -20°C to +50°C ambient temperature. The industrial-grade cooling system with 85-liter coolant capacity and oversized radiator prevents overheating in desert mining operations (Australia, Middle East, Chile) where ambient temperatures reach 45–48°C. For Arctic conditions below -20°C, an optional cold-weather package includes engine block heater, synthetic fluids rated to -40°C, and fuel pre-heating. The turbocharged Cummins QSZ13 engine maintains approximately 90–95% rated power at altitudes up to 3,500 meters—adequate for most mining operations in mountainous regions (Andes, Rockies, Central Asian mines). At 3,500m elevation, the compressor still delivers approximately 42–43 m³/min at 9.5 bar, sufficient for 3–4 drill rigs. For extreme altitudes above 4,000m, consider high-altitude ECU calibration (available as factory option) to optimize fuel injection and turbo boost for thin air conditions.
