Air Compressor

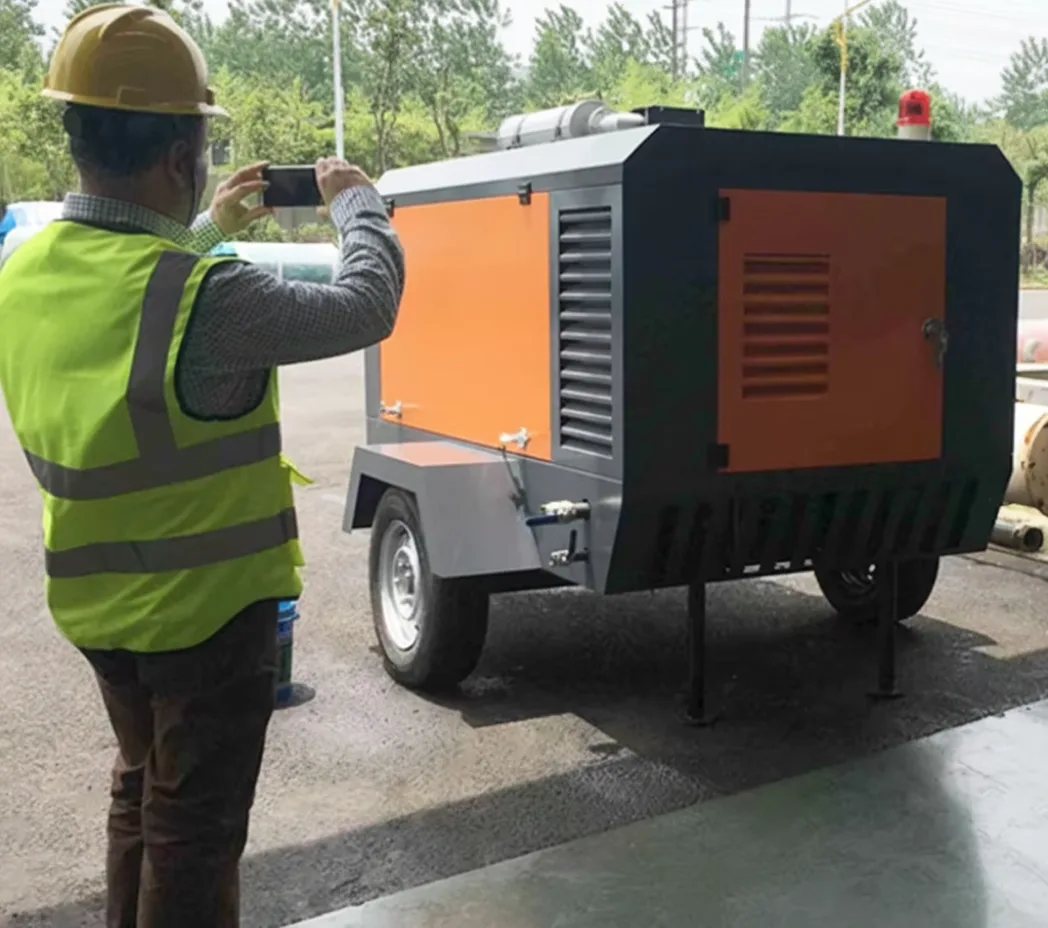

27 m³/min 10 bar Portable Diesel Air Compressor for Heavy Duty Applications

Air Capacity

27 m³/min

Work Pressure

10 bar

Engine Power

239 kW

Engine

Cummins

Peakroc® PRMD series portable air compressors with a free air delivery range of 5.00–46.38 m³/min and a working pressure of 7–35 bar, these compressors can meet the requirements of almost any industrial application.

Certifications:
ISO9001 Quality Management System
UKAS Quality Management
CE Certification (European Safety Compliance)

VIEW SPECIFICATIONS

PeakRoc® 27 m³/min 10 bar compressor is ideal for high-pressure and high-air-demand applications, including:

Mining & Quarrying: Reliable air delivery for drilling, excavation, and material handling.
Hydropower & Infrastructure Projects: Essential for powering tools and equipment at hydropower stations, dams, and other large-scale infrastructure works.
Water Well Drilling & Borehole Projects: High-pressure air for deep-water drilling operations.
Sandblasting & Surface Treatment: Ideal for abrasive blasting in construction, automotive, and industrial maintenance.
Pipeline Pressure Testing: Used in pipeline construction and maintenance for pressure testing and leak detection.
Public Works & Utility Services: Supplies air for public infrastructure maintenance and emergency response projects.

The Peakroc® PRMD-2710 delivers a free air delivery of 27 m³/min at 10 bar (950cfm 145psi), engineered for heavy-duty applications such as mining, construction, and water well drilling. Powered by a high-performance diesel engine, it combines exceptional airflow, fuel efficiency, and robust construction, ensuring reliable performance even in the most challenging environments. Built with a reinforced chassis and a durable sound-proof steel enclosure, this compressor is designed to withstand demanding field operations while providing stable and continuous air supply.

Reliable Power and Strong Structure

Powered by a fuel-efficient heavy-duty diesel engine, this compressor is designed for extended service life and optimal performance under challenging conditions. Its robust chassis, made from wear-resistant materials, ensures stability even in rugged environments. The 2 mm cold-rolled steel outer shell, combined with flame-retardant soundproof materials, provides added durability and safety during operation.

High-Efficiency Air End and Core Components

Featuring an advanced screw air end with an SAP rotor profile, this compressor ensures high compression efficiency and reliable output. The use of American alloy steel rotors and Swedish SKF bearings enhances the overall efficiency and extends the lifespan of the compressor, reducing downtime and maintenance costs.

Clean Air System and Flexible Installation

Equipped with a two-stage air filtration system that removes up to 99.9% of dust, ensuring clean air for all operations. The high-efficiency oil filter helps to keep the lubrication system clean, reducing wear and prolonging the compressor’s service life. The optional skid-mounted configuration offers flexibility for installation, transportation, and use across various field operations.

Energy Efficient and Environmentally Friendly

The compressor’s diesel engine is designed to operate with minimal fuel consumption, making it an energy-efficient choice for long-term operations. The noise-reduction features also ensure a safer and more comfortable work environment for your team.

Specifications

Model: PRMD2710
Free air delivery	27.00 m³/min (950 cfm)
Working pressure	10 bar (145 psi)
Max. design pressure	10 bar (145 psi)
Dimensions (L × W × H)	4380 × 1980 × 2688 mm
Weight	4500 kg
Wheel quantity	4
Outlet valve size	G 1″ × 1 + G 2″ × 1
Diesel Engine
Engine brand	Cummins
Engine model	6LTAA8.9-C325-Ⅱ
Rated power	239 kW (325 hp)
Bore × stroke × cylinders	114 × 145 mm × 6
Engine speed (rated)	2020 RPM
Engine speed (unloaded)	1350 RPM
Engine oil capacity	30 L
Coolant capacity	60 L
Battery capacity	2 × 830 CCA
Fuel tank capacity	586 L
Compressor System
Compressed air vessel capacity	182 L
Lubricant capacity	110 L

FAQs

1 - What are the key benefits of using the Peakroc® 27 m³/min 10 bar Portable Diesel Air Compressor in construction?

This compressor provides reliable air pressure for high-efficiency pneumatic tools, ensuring fast and efficient operation on construction sites. Its rugged design also allows it to withstand harsh conditions, making it ideal for construction projects.

2 - How does the Peakroc® 27 m³/min 10 bar compressor reduce maintenance costs?

The advanced air filtration system and high-efficiency oil filter ensure clean air and lubricants, which helps reduce wear on internal components, extending the service life and lowering maintenance expenses.

3 - Is the Peakroc® 27 m³/min 10 bar Diesel Air Compressor suitable for mining applications?

Yes, this compressor is ideal for mining operations due to its powerful air output and robust construction. It supports drilling, excavation, and other demanding mining tasks with ease.

4 - Can the Peakroc® 27 m³/min 10 bar Portable Diesel Air Compressor be used in extreme weather conditions?

Yes, the durable design and efficient cooling system make this compressor suitable for operation in extreme weather conditions, ensuring reliable performance in both hot and cold environments.

5 - What type of fuel does the Peakroc® 27 m³/min 10 bar Portable Diesel Air Compressor use?

It uses diesel fuel, which is known for its energy efficiency and availability in remote locations, making it ideal for fieldwork and outdoor operations.

6 - What is the recommended maintenance schedule for the Peakroc® 27 m³/min 10 bar Portable Diesel Air Compressor?

Regular maintenance includes checking the air filters, oil levels, and pressure systems. It’s recommended to perform these checks every 250-500 operational hours, depending on the intensity of use. Always refer to the user manual for specific maintenance intervals.
