Air Compressor

15 m³/min 18 bar Portable Diesel Air Compressor for Drilling & Pipeline Pressure Testing

Air Capacity

15 m³/min

Work Pressure

18 bar

Engine Power

154 kW

Engine

Cummins

Peakroc® PRMD series portable air compressors with a free air delivery range of 5.00–46.38 m³/min and a working pressure of 7–35 bar, these compressors can meet the requirements of almost any industrial application.

Certifications:
ISO9001 Quality Management System
UKAS Quality Management
CE Certification (European Safety Compliance)

VIEW SPECIFICATIONS

PeakRoc® 15 m³/min 18 bar compressor is ideal for high-pressure and high-air-demand applications, including:

Water well drilling & geothermal boreholes
DTH hammer drilling & mining quarries
Pipeline pressure testing and leak detection (gas, oil, water lines)
Sandblasting, abrasive blasting & surface treatment
Hydropower, railway and infrastructure foundations
Oil and gas field support equipment

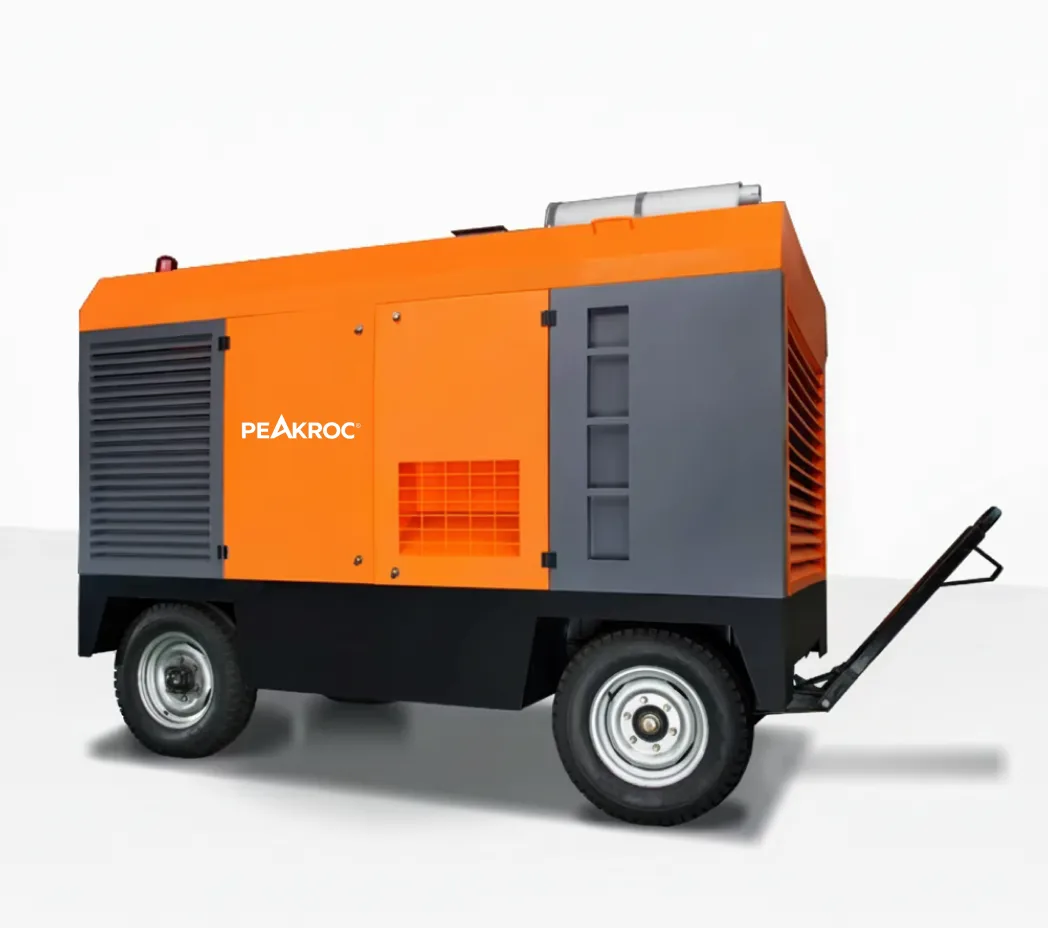

The PeakRoc® PRMD-1518 portable diesel screw air compressor provides 15 m³/min of compressed air at 18 bar (530 cfm / 261 psi), making it suitable for deep drilling operations, pipeline pressure testing, and other high-pressure applications.

Equipped with a heavy-duty diesel engine and high-efficiency screw air end, it delivers stable air output in remote, dusty, or high-temperature job sites where electric power is not available.

1. Reliable Powertrain & Heavy-Duty Structure

Industrial-grade diesel engine provides consistent torque under full load.
Reinforced towable chassis with shock-absorbing mounts for rough terrains.
2 mm cold-rolled steel canopy with flame-retardant and noise-insulated lining.
Designed for long-term field operation with easy service access.

2. High-Pressure Air End & Efficient Cooling System

Oil-injected screw air end designed for 18 bar continuous working pressure.
Precision-machined rotors, SKF bearings, and low oil carryover design.
Optimized cooling system for compressor, engine, and intercooler ensures continuous operation even in 45 °C environments.

3. Clean Air System & Maintenance-Friendly Design

Two-stage heavy-duty air filtration removes up to 99.9% dust for drilling and mining environments.
High-performance oil separator ensures clean compressed air and extended service life of pneumatic tools.
Large doors for straightforward access to filters, oil separator, belts and engine components.

Specifications

Model: PRMD-1518
Free air delivery	15.00 m³/min (530 cfm)
Working pressure	18 bar (261 psi)
Max. design pressure	18 bar (261 psi)
Dimensions (L × W × H)	3500 × 2050 × 2300 mm
Weight	3000 kg
Wheel quantity	2
Outlet valve size	G 1-1/2″ × 1 + G 3/4″ × 1
Diesel Engine
Engine brand	Cummins
Engine model	QSC5.9-C210-30
Rated power	154 kW (210 hp)
Bore × stroke × cylinders	102 × 120 mm × 6
Engine type	Turbocharged, charge air cooling
Engine speed (rated)	1950 RPM
Engine speed (unloaded)	1400 RPM
Engine oil capacity	18 L
Coolant capacity	45 L
Battery capacity	2 × 760 CCA
Fuel tank capacity	250 L
Compressor System
Compressed air vessel capacity	112 L
Lubricant capacity	60 L
