Air Compressor

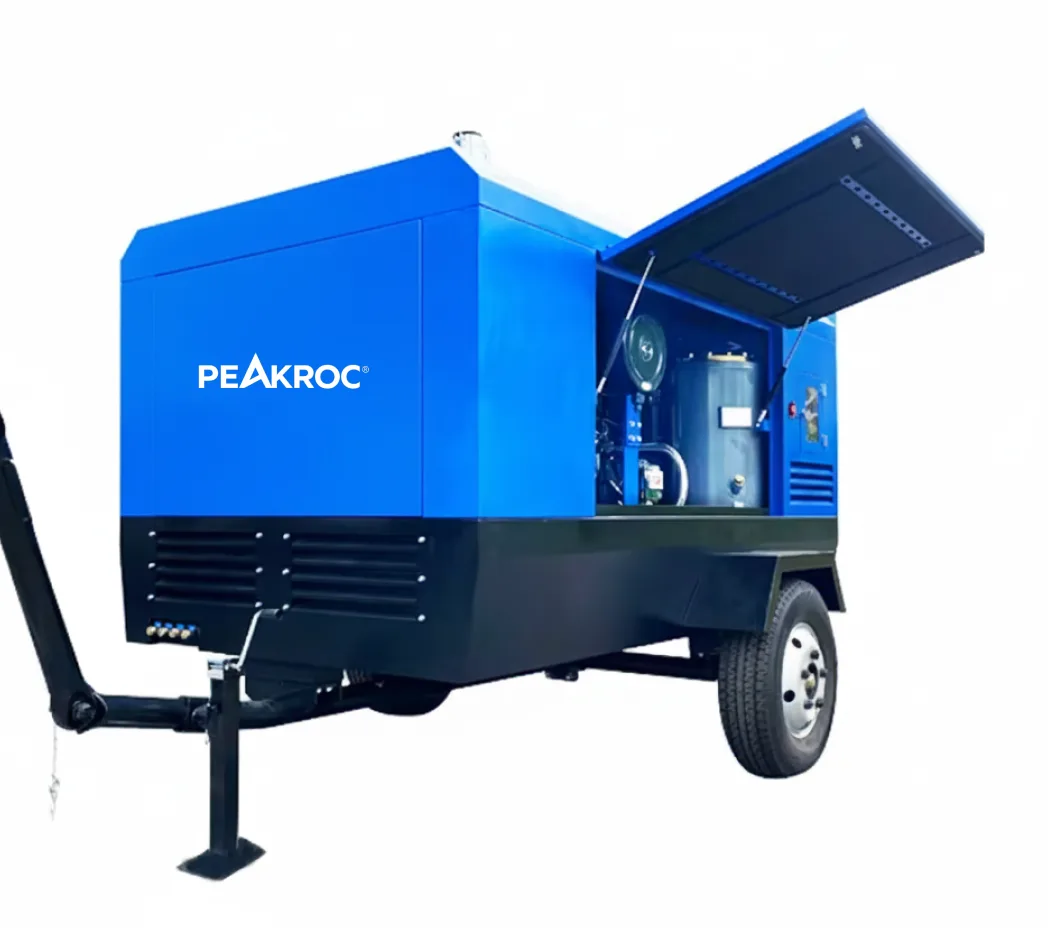

10 m³/min 13 bar Portable Diesel Air Compressor for Drilling and Sandblasting

Air Capacity

10 m³/min

Work Pressure

13 bar

Engine Power

110 kW

Engine

Cummins

Peakroc® PRMD series portable air compressors with a free air delivery range of 5.00–46.38 m³/min and a working pressure of 7–35 bar, these compressors can meet the requirements of almost any industrial application.

Certifications:
ISO9001 Quality Management System
UKAS Quality Management
CE Certification (European Safety Compliance)

VIEW SPECIFICATIONS

Peakroc® PRMD series diesel portable Screw Air Compressor are widely used in:

DTH drilling, rock blasting tools
100–300 m rotary & DTH borehole drilling
Road construction, anchor drilling
High-pressure continuous airflow
Pipeline Pressure Testing 10–13 bar compressed air supply
Oil & Gas Field Operations Well servicing, nitrogen booster support

The Peakroc® 10 m³/min 13 bar (375cfm 189psi) portable diesel screw air compressor is designed for demanding drilling, mining, sandblasting and heavy-duty construction operations where stable high-pressure air is essential. It combines a fuel-efficient Cummins engine with a high-performance screw air end to deliver consistent airflow under tough working conditions.

1. High Pressure & Stable Output

Delivers 10 m³/min (≈ 353 cfm) at 13 bar (≈ 188 psi), suitable for DTH drilling, geothermal drilling and mining tools.
Heavy-duty diesel engine provides strong torque and low fuel consumption at continuous load.

2. Robust Structure & Long Service Life

2 mm cold-rolled steel enclosure with flame-retardant sound insulation.
Reinforced chassis with damping system for rough terrain mobility.
Skid or towable trailer-mounted structure available.

3. Reliable Screw Air End & Filtration System

Advanced SAP rotor profile with high compression efficiency.
U.S. alloy rotor material paired with SKF bearings for extended lifespan.
Two-stage air filter removes ≥99.9% dust; oil filter ensures clean lubrication system.

Specifications

Model: PRMD-1013
Free air delivery	10.00 m³/min (375 cfm)
Working pressure	13 bar (189 psi)
Max. design pressure	13 bar (189 psi)
Dimensions (L × W × H)	3240 × 1880 × 2100 mm
Weight	1800 kg
Wheel quantity	2
Outlet valve size	G 1-1/2″ × 1 + G 3/4″ × 1
Diesel Engine
Engine brand	Cummins
Engine model	QSB3.9-C150-31
Rated power	110 kW (150 hp)
Bore × stroke × cylinders	102 × 120 mm × 4
Engine speed (rated)	2300 RPM
Engine speed (unloaded)	1700 RPM
Engine oil capacity	11 L
Coolant capacity	27 L
Battery capacity	720 CCA
Fuel tank capacity	160 L
Compressor System
Compressed air vessel capacity	90 L
Lubricant capacity	40 L
